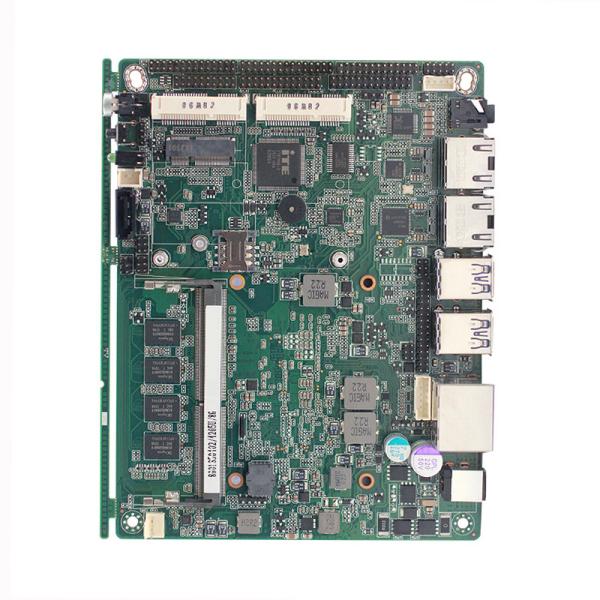

| Processor system | CPU | Integrated Celeron ® 4205U dual cores 2 threads 1.8GHz Processor |
| CPU package | BGA |
| chipset | Intel® Whiskey lake-U series SOC |
| BIOS | EFI BIOS |
| RAM | Technology Architecture | Dual channel DDR4 2133Mhz; maximum capacity supports 24G (onboard 8G + extended 16G) |
| Onboard memory particles | 4G / 8G DDR4 onboard memory optional |
| Slot | 1 * DDR4 SODIMM 260 Socket |
| video | Graphics controller | Intel® UHD Graphics 620 (graphics card for i7-8565U); the graphics card model is related to the CPU |
| HDMI | One HDMI1.4 interface, maximum resolution support (HDMI1.4) 4096 * 22160 @ 30HZ support 4K display |
| DP ++ | 1 DP 1.2 interface, support DP ++, maximum resolution support (HDMI1.4) 4096 * 2304 @ 60HZ support 4K display |
| LVDS / EDP | 1 LVDS maximum support 1920 * 1080 or 1 EDP1.2 maximum support 4096x2160 @ 60 Hz 24bpp (choose one) |
| Dual display support | LVDS / EDP + DP, LVDS / EDP + HDMI, HDMI + DP synchronous or asynchronous display |
| Triple displays | LVDS / EDP + DP + HDMI synchronous or asynchronous display |
| I / O backplane | port | 1 * HDMI
1 * DP ++
4 * USB3.1 (GEN2)
2 * LAN
1 * MIC + LINE2 OUT
1 * DC |
| The internet | Controller | 2*Gigabit LAN (1*Intel I211AT, one Intel I219-LM) |
| Audio | ALC662-VD | 1 * MIC1
1 * LINE2 OUT
1 * MIC2
1 * FRONT OUT
1 * SPDIF
1 * AMPLIFIER OUT (TPA3113D2,6W) |
| Super I / O | Controller | IT8786E-I / EX / GX / HX |
| Hardware monitoring | Watchdog timer | 0-255 seconds, provide watchdog routine |
| | Cooler | Aluminum radiator with fan |
| Input / output interface | USB | 4 * USB3.1 (USB3.1 GEN2 is backward compatible), when using Celeron Pentium processor, USB can only reach GEN1 4 USB2.0 |
| Serial port | COM1, 2, 4 can be selected as RS232 or RS485 by jumper cap and BIOS, COM3 can be selected as RS422 / RS485 by BIOS, COM5, COM6 are RS232 |
| GPIO | 8 bits, provide routines, freely define input / output, 3.3V@24mA level |
| Expansion bus | Mini-PCle | 1 Mini-PCIe slot, support PCIE signal and USB signal device |
| storage | M.2 | M.2 KEY E: 2230 (WIFI) interface |
| SATA | 1* standard SATAIII interface, maximum transfer rate 6Gb / s |
| M-SATA | 1 Mini-PCIe M-SATA Scoket, support SANDISK protocol, maximum transfer rate 6gb / s (choose with onboard SSD) |
| Onboard SSD | Onboard 32G / 64G / 128G (choose one with MSATA) |
| Power Supply | Power type | Wide voltage 9-36V power supply |
| Working Environment | Working temperature | -20℃ ~ +60℃ |
| Storge temperature | -40℃ ~ +85℃ |
| Working humidity | 0% ~ 90% non-condensing |
| Storge humidity | 0% ~ 90% non-condensing |
| Support sysytem | | Windows7 Windows 10 Linux |
| Size | Size | 154.8 x 117.4 mm |
| Weight | 0.5KG |
